Roots Vacuum Pump

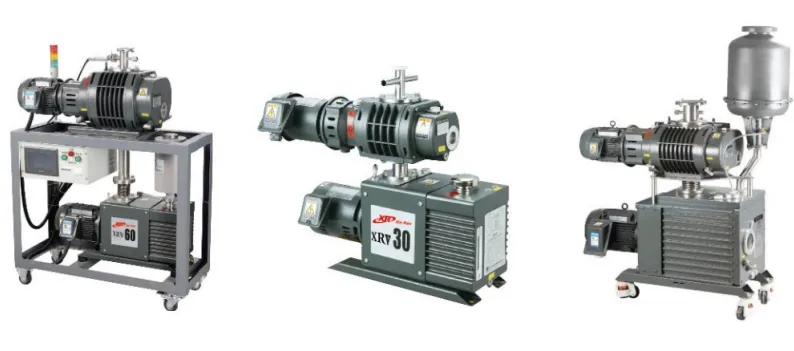

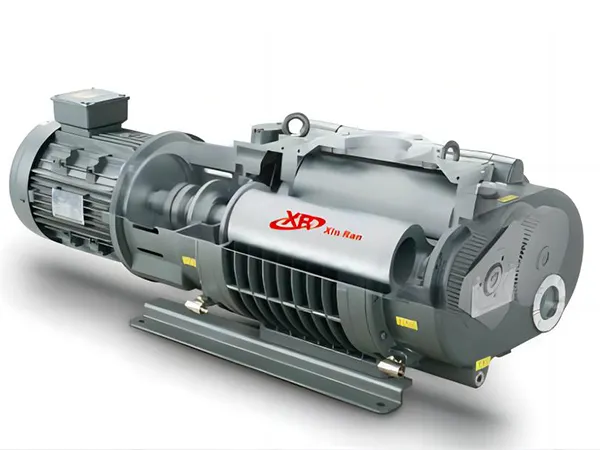

Roots vacuum pump is equipped with two synchronously rotating rotors, either bi-lobe or multi-lobe, which maintain a specific clearance from each other and from the inner wall of the pump casing. It is classified as a rotary positive displacement vacuum pump, often used as a mechanical booster pump in various applications.
The multi-stage centrifugal blowers are extensively used in various applications that require air delivery. These include providing blast air for smelting furnaces and iron-making furnaces, supporting coal washing jig machines, aiding in mine flotation processes, aerating sewage in wastewater treatment, and gas-making in chemical processing. Roots vacuum pump is also suitable for conveying other special gases.
Features
- Oil-Free Intermediate Sealing: Employs multiple oil-free intermediate sealing methods to ensure a highly clean vacuum environment inside the rotor chamber.
- Guarantees excellent geometric symmetry of the rotors, enhancing performance and manufacturing process.
- Operates with low noise and has a high lifespan.
- The pump's rotors are made from aluminum alloy, which provides rapid heat dissipation, corrosion resistance, and energy efficiency.
- Ensures long-term stable operation without oil leaks utilizing a special shaft sealing method.
- Roots vacuum pump’s design is space-efficient, easy to install, and light, making it ideal for various industrial settings.
| Model | | | | | | |||
| Pumping Rate | 50HZ | m³h (L/min) | 95 | 280(4670) | 500(8330) | 1000(16667) | 2000(33330) | |
| 60HZ | m³h (L/min) | 108 | 330(5500) | 600(10000) | 1200(20000) | 2400(40000) | ||
| Max. Allowable Pressure Difference | 50HZ | Pa | 4.0×103 | 7.3×103 | 5.6×103 | |||
| 60HZ | Pa | 3.3×103 | 6.0×103 | 4.7×103 | ||||
| Motor Power (2 poles) | Three phase | kW | 0.4 | 0.75 | 2.2 | 3.7 | 7.5 | |
| Voltage | Three phase | V | 380,400 | 380,400 | ||||
| Amount of Oil Required | L | 0.4 | 0.8 | 1.6 | 2 | 4 | ||
| Cooling Water | Flow | L/min | - | 2 | 2 | 3 | 3 | |
| Pressure Differential | MPa | - | 0.1 | |||||
| Water temperature | ℃ | - | 5~30 | 5~30 | 5~30 | 5~30 | ||
| Weight | kg | 30 | 51 | 80 | 115 | 227 | ||
| Model | | | ||
| Pumping Rate | 50HZ | m³h (L/min) | 2590 | 4140 |
| 60HZ | m³h (L/min) | 3110 | 4985 | |
| Motor Power (2 poles) | Kw | 11 | ||
| Cooling Water | Flow | L/min | 6 | |
| Pressure | MPa | 0.2~0.6 | ||
| Water Temperature | ℃ | 5~35 | ||
| Weight | - | 350 | 420 | |
| Air Inlet | - | ISO160 | ISO250 | |
| Air Outlet | ℃ | ISO100 | ||
For more details, please click pdf download
