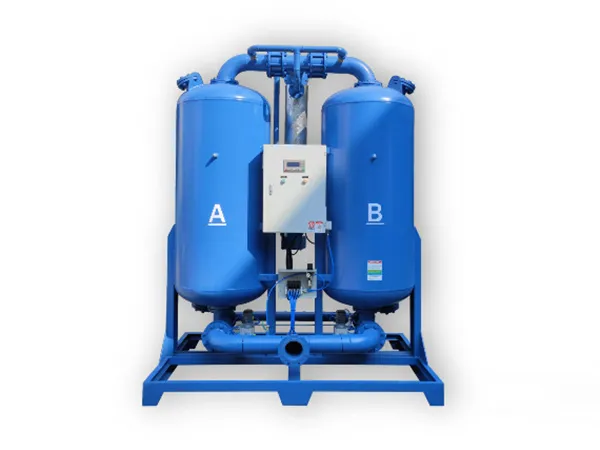

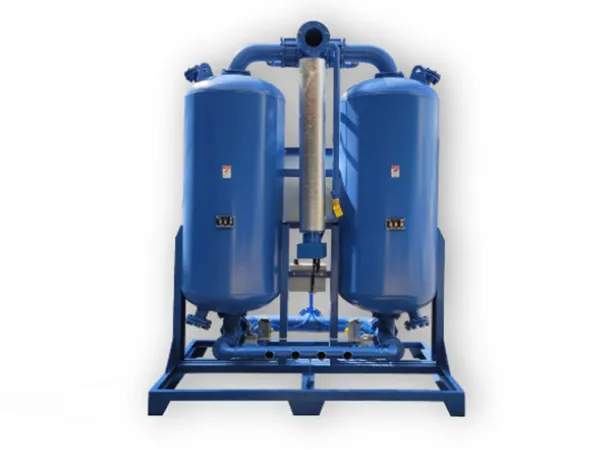

Heated Desiccant Air Dryer

Heated Desiccant Air Dryer

The heated desiccant air dryer is a new economic product developed by our company. This air dryer adds a heater based on the heatless desiccant dryer to heat the purge air. It not only benefits the regeneration effect but also decreases regeneration purge loss.

Our heated desiccant air dryer have avoided the disadvantage of short switching time of heatless desiccant air dryers and have overcome the large power consumption of conventional heated desiccant air dryers. Hence, our air dryers are the most economical and energy-efficient ones in the field of purification industry. Till now, they have been comprehensively applied in industries like metallurgy, electricity, electron, instrument, chemical engineering, petroleum, tobacco, and more.

Bottom

Working Principle of Heated Desiccant Air Dryers
These desiccant air dryers have integrated the advantages of pressure swing adsorption and temperature swing adsorption. Firstly, the sorbent in air dryers absorbs water under normal temperature conditions, and then the air dryer can completely eliminate the water during purging period, with the help of the thermal diffusion and high temperature difference originated from heated air.

Standard Collocation of Instruments
Pressure gage for right and left towers
Temperature sensor
Standard Pilot air filter and Regulator
Electronic Control Panel

Work Condition of Heated Desiccant Air Dryer
Purge air: ≤3~6%
Work pressure: 0.6~1.0Mpa
Oil content of intake air: ≤0.1mg/m
Pressure dew point of finished air: -40℃~-70℃
Desiccant: activated aluminium oxide and molecular sieve
Work cycle: T=60~180 min
Intake air temperature: 0℃~45℃

Technical Parameter of Heated desiccant Air Dryer

Items Model Capacity (Nm3/min) Heater (KW) Connection Size Dimension(mm) Weight (kg)
L W H
1MXF 1.2 1.2 DN25 605 560 1188 144
2MXF 2.4 1.5 25DN 605 560 1646 182
3MXF 3.8 2 25DN 605 560 1553 211
6MXF 6.5 3.0 40DN 973 800 1018 364
8MXF 8.5 3.5 50DN 1062 900 1950 560
10MXF 10.7 3.9 50DN 1162 900 1880 645
12MXF 13 3.9 50DN 1162 900 2090 720
16MXF 17 5.1 80DN 1375 1000 1908 930
20MXF 23 5.4 80DN 1375 1000 2208 1120
25MXF 27 7 80DN 1375 1100 2020 1240
30MXF 33 8.2 80DN 1375 1100 2110 1370
40MXF 45 10 100DN 1665 1100 2393 1700
50MXF 55 12.5 125DN 2015 1200 2473 2100
60MXF 65 15 125DN 2015 1200 2673 2450
80MXF 85 25 125DN 2213 1300 2870 2800
100MXF 100 40 150DN 2500 1900 2933 3950
120MXF 120 48 150DN 2800 2100 3018 4685
150MXF 150 60 200DN 2900 2200 3429 5900
200MXF 200 90 200DN 3100 2400 3529 8200
250MXF 250 95 250DN 3200 2600 3645 9980
300MXF 300 114 250DN 3400 2800 3810 11650
350MXF 350 130 300DN 3500 2900 3950 14180
400MXF 400 145 350DN 3600 3000 4250 15750

Shanghai Xinran Compressor Company is an ISO9001:2008 certificated, China-based manufacturer of heated desiccant air dryers. We also have manufactured complete series of heatless desiccant air dryers and refrigerant air dryers to satisfy the different demands of our clients. All our products are environmental friendly and energy efficient. Besides, they are provided with reasonable prices.
If you are in need of any air dryers, please contact us by phone or email list on the website.
