    Air Dryer

    Refrigerated Air Dryer

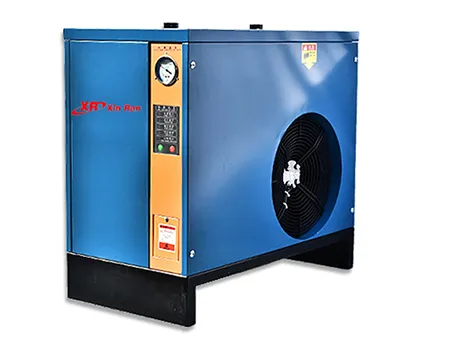

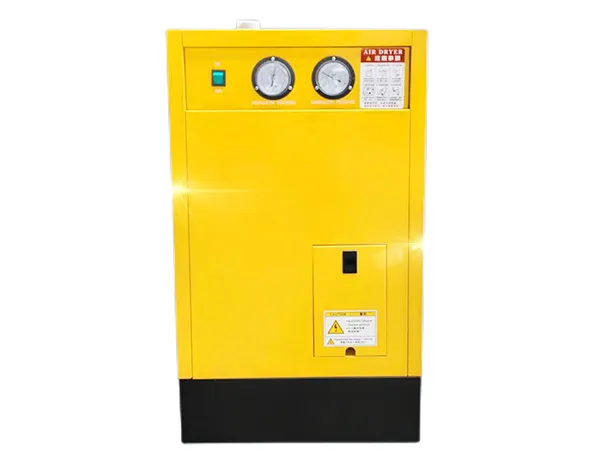

    Refrigerated Air Dryer

    Our refrigerant air dryer is designed based on advanced production technology from American XINRAN, and meanwhile, we have also made some improvement. Hence, our refrigerant air dryers work efficiently and stably.

    Request a Quote
    Advantages of Refrigerant Air Dryer
    • Adverse type heat exchange
      Our refrigerant air dryer is equipped with superior quality and high efficiency screwed pipes or smooth pipes, which ensures high heat conduction. Meanwhile, the adoption of adverse type heat exchange is more energy efficient and reliable.
    • Thoroughly vapor-liquid separation
      The advanced and filterable vapor-liquid separator, which is inbuilt with an imported filter element, can reach a separation efficiency of over 99%.
    • Combined Low Dew Point Compressed Air Dryer
      Combined Low Dew Point Compressed Air Dryer
    • High Temperature Air Cooled Refrigerant Dryer
      High Temperature Air Cooled Refrigerant Dryer
    • Normal Temperature Water Cooling Refrigerate
      Normal Temperature Water Cooling Refrigerate
    • Refrigerated Air Dryer, High Temperature Water Cooling Type
      Refrigerated Air Dryer, High Temperature Water Cooling Type
    • Refrigerated Air Dryer, Normal Temperature Air Cooling Type
      Refrigerated Air Dryer, Normal Temperature Air Cooling Type

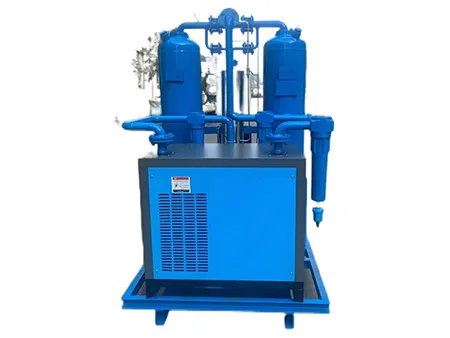

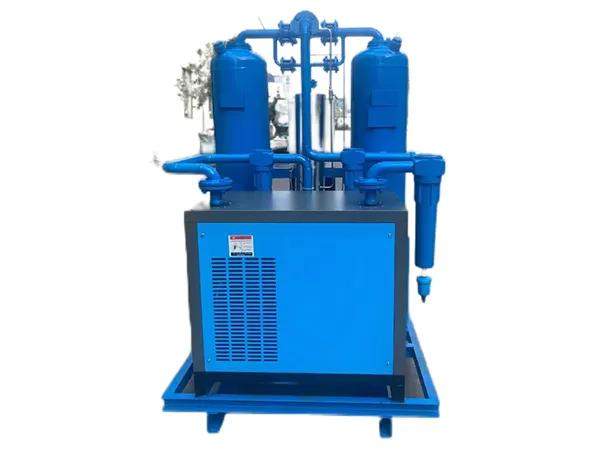

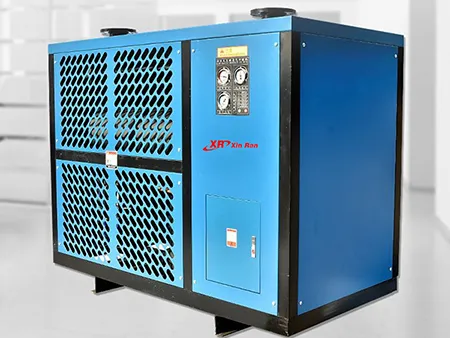

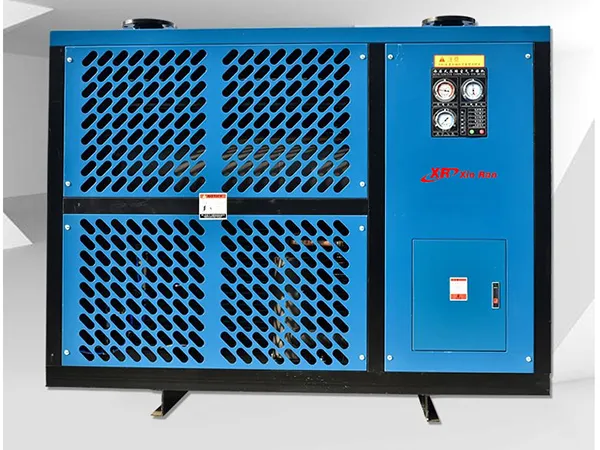

    Combined Low Dew Point Compressed Air Dryer
    Combined Low Dew Point Compressed Air Dryer Combined Low Dew Point Compressed Air Dryer

    Combined Low Dew Point Compressed Air Dryer

    • Air inlet pressure: 0.6~1.0Mpa
    • Dew point: -40~-70℃
    • Pressure drop: ≤0.05Mpa
    • Cooling water temperature: ≤32℃
    • Air inlet temperature: ≤45℃
    • Purge air: 3~5%
    Request a Quote
    Technical Parameter of Combined Low Dew Point Compressed Air Dryer
    Model Item XR-1 MZ XR-2 MZ XR-3 MZ XR-6 MZ XR-10 MZ XR-12 MZ XR-15 MZ XR-20 MZ XR-25 MZ XR-30 MZ XR-40 MZ XR-50 MZ XR-60 MZ XR-80 MZ XR-100 MZ XR-120 MZ XR-150 MZ XR-200 MZ XR-250 MZ XR-300 MZ
    Air capacity
    (Nm3/min)
    1.2 2.4 3.8 6.5 10.7 13 17 23 27 33 45 55 65 85 100 120 150 200 250 300
    Cooling water
    circling capacity(Nm3/h)
    - - - - - - 3 3.7 4.4 5.9 7.4 8.9 11.1 14.5 18.5 22.0 29.5 37.0 46.5 55.6
    Air connection ZG1" ZG1" ZG1" ZG1-1/2" ZG2" ZG2" DN
    80
    DN
    80
    DN
    80
    DN
    80
    DN
    100
    DN
    125
    DN
    125
    DN
    125
    DN
    150
    DN
    150
    DN
    150
    DN
    200
    DN
    250
    DN
    250
    Weight(kg) 980 980 1100 1390 1500 1500 18
    00
    18
    13
    20
    85
    21
    30
    23
    29
    25
    24
    25
    84
    24
    60
    27
    40
    29
    80
    29
    60
    32
    00
    34
    00
    37
    00
    measure
    ment
    Length (mm) 1030 1030 1065 1200 1320 1330 19
    80
    19
    00
    20
    45
    22
    30
    24
    16
    25
    00
    25
    00
    31
    00
    35
    60
    36
    80
    40
    60
    49
    50
    39
    50
    50
    10
    Width (mm) 1240 1759 1607 1887 2025 2080 21
    78
    22
    57
    24
    74
    25
    27
    26
    78
    28
    43
    28
    43
    26
    95
    29
    33
    29
    20
    34
    29
    36
    08
    37
    75
    42
    00
    Height (mm) 305 450 510 775 1060 1200 13
    25
    17
    40
    20
    50
    23
    75
    29
    60
    32
    00
    34
    45
    43
    30
    56
    50
    61
    15
    68
    00
    76
    60
    97
    80
    112
    00

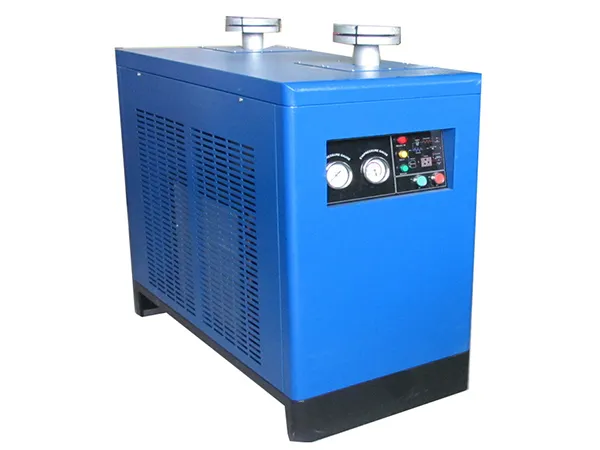

    High Temperature Air Cooled Refrigerant Dryer
    High Temperature Air Cooled Refrigerant Dryer High Temperature Air Cooled Refrigerant Dryer

    High Temperature Air Cooled Refrigerant Dryer

    • Inlet Temperature: ≤80℃
    • Cooling Method: Air Cooled Type
    • Inlet Pressure: 0.6~1.0Mpa
    • Pressure Exhaust: ≤0.03Mpa
    • Pressure Dew Point: 3~10℃
    • Refrigerant: R22
    Request a Quote
    Technical Parameter of High Temperature Air Cooled Refrigerant Dryer
    Model Items XR-0.7 HTF XR-1 HTF XR-2 HTF XR-3 HTF XR-6 HTF XR-7 HTF XR-10 HTF XR-13 HTF XR- 15 HTF XR-20 HTF XR-25 HTF XR-30 HTF XR-40 HTF XR-50 HTF XR-60 HTF XR-80 HTF
    Flow Air Delivery
    (Nm3/min)
    0.7 1.2 2.4 3.8 6.5 7.5 10.7 13.5 17 23 27 33 45 55 65 85
    Power Source(V/Hz) 220/50 380/50
    Compressor
    Power(HP)
    1 1.2 2 2.6 3.6 3.8 3.9 4.2 5.5 6.5 8.5 10.5 13.5 20
    Fan Power 45 90 150 2×90 2×150 2×245 4×180 2×180+
    2×245
    4×
    245
    2×500+
    3×245
    6×450 5×550 4×550+
    2×870
    Connection Size ZG1" ZG1-1/2" ZG2" DN80 DN100 DN
    125
    DN
    125
    DN125
    Net Weight(kg) 50 60 65 120 190 260 435 480 600 700 820 900 1100 1220
    Dimen
    sion
    Length(mm) 640 760 760 1000 1200 1400 1690 1795 1970 1810 2160 2350 2400 2200
    Wight(mm) 430 430 430 600 700 800 850 900 900 1010 1100 1190 1410 1550
    Height(mm) 580 700 720 860 1050 1130 1658 1688 1708 1908 2018 2250 2238 2600

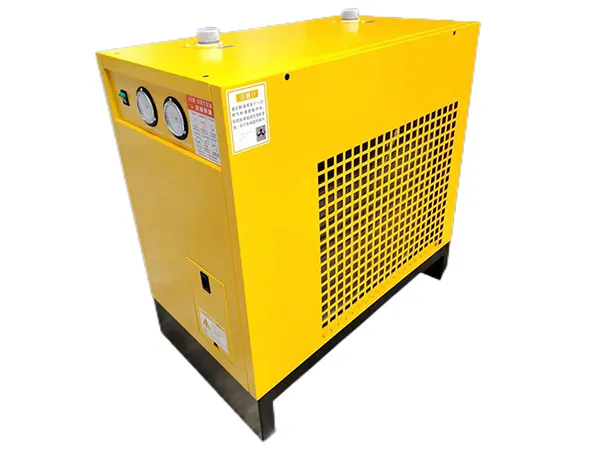

    Normal Temperature Water Cooling Refrigerate
    Normal Temperature Water Cooling Refrigerate Normal Temperature Water Cooling Refrigerate

    Normal Temperature Water Cooling Refrigerate

    • Inlet temperature: ≤45℃
    • Cooling method: water cooling
    • Pressure drop: ≤0.02Mpa
    • Dew point: 3~10℃
    • Cooling water inlet temperature: ≤32℃
    • Refrigerant: R22
    • Cooling water inlet pressure: 0.2~0.4Mpa
    Request a Quote
    Technical Parameter of Normal Temperature Water Cooling Refrigerate
    Item / model XR -15 NW XR -20 NW XR -25 NW XR -30 NW XR -40 NW XR -50 NW XR -60 NW XR -80 NW XR -100 NW XR -120 NW XR -150 NW XR -180 NW XR -200 NW XR -300 NW XR -400 NW XR -500 NW
    Air capacity (Nm3/min) 17 23 27 33 45 55 65 85 100 120 150 180 200 300 400 500
    Voltage/frequency (V/Hz) 380/50
    Power of compressor (HP) 3.9 4.2 5.5 6.5 8.5 10.5 13.5 20 25 30 37.5 45 50 80 100 125
    Circulating mass of cooling water(Nm3/h) 3.0 3.7 4.4 5.9 7.4 8.9 11.1 14.5 18.5 22.0 29.5 33.3 37.0 55.6 74 92.5
    Pipe size of air DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN400
    Pipe size of cooling water ZG1-1/2" ZG2" ZG2-1/2" ZG3" DN100
    Total weight(kg) 360 420 550 640 730 830 1020 1600 2400 2460 2750 3200 3250 3900 4530 5120
    Dimension length(mm) 1500 1540 1795 1863 2020 2170 2230 2460 2740 2980 2960 3300 3550 4000 4350 4760
    width(mm) 750 760 800 913 950 1120 1030 1160 1160 1160 1460 1650 1725 1980 2150 2380
    height(mm) 1320 1360 1428 1598 1598 1758 1798 2019 2019 2020 2193 2226 2380 2580 2670 2730

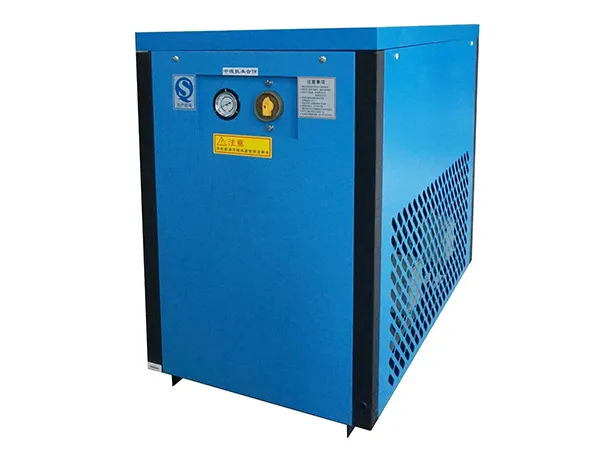

    Refrigerated Air Dryer, High Temperature Water Cooling Type
    Refrigerated Air Dryer, High Temperature Water Cooling Type Refrigerated Air Dryer, High Temperature Water Cooling Type

    Refrigerated Air Dryer, High Temperature Water Cooling Type

    • Inlet air temperature: ≤80℃
    • Cooling method: water cooling
    • intake pressure: 0.6~1.0Mpa
    • Pressure drop: ≤0.03Mpa
    • Pressure dew point: 3~10℃
    • Inlet temperature of cooling water: ≤32℃
    • Refrigerant: R22
    • Inlet pressure of cooling water: 0.2~0.4Mpa
    Request a Quote
    Technical Parameter of Refrigerated Air Dryer, High Temperature Water Cooling Type
    Item model XR-15 HTW XR-20 HTW XR-25 HTW XR-30 HTW XR-40 HTW XR-50 HTW XR-60 HTW XR-80 HTW XR-100 HTW XR-120 HTW XR-150 HTW XR-180 HTW XR-200 HTW XR-300
    HTW
    Air capacity(Nm3/min) 17 23 27 33 45 55 65 85 100 120 150 180 200 300
    Voltage/frequency(V/Hz) 380/50
    Power of compressor(HP) 3.9 4.2 5.5 6.5 8.5 10.5 13.5 20 25 30 37.5 45 50 80
    Circulating mass of cooling water(Nm3/h) 6.0 7.5 8.8 11.8 14.8 17.8 22.2 29.6 37.0 44.0 59.0 66.6 74.0 112.5
    Pipe size of air DN80 DN100 DN125 DN150 DN200 DN250
    Pipe size of cooling water ZG1-1/2" ZG2" ZG2-1/2" ZG3"
    Total weight(kg) 420 470 590 680 785 870 1100 1700 2480 2520 2800 3050 3360 3920
    Dime-
    nsion
    length(mm) 1560 1600 1805 1950 2250 2130 2310 2460 2860 2960 2960 3000 3130 3800
    width(mm) 1118 1110 1110 1283 1285 1350 1430 1440 1620 1620 1620 1810 2090 2470
    height(mm) 1340 1486 1510 1700 1683 1708 1708 1893 2000 2030 2050 2210 2470 2959

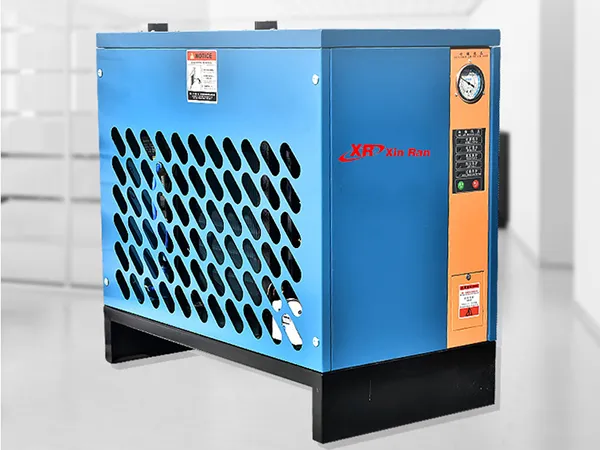

    Refrigerated Air Dryer, Normal Temperature Air Cooling Type
    Refrigerated Air Dryer, Normal Temperature Air Cooling Type Refrigerated Air Dryer, Normal Temperature Air Cooling Type

    Refrigerated Air Dryer, Normal Temperature Air Cooling Type

    • Inlet air temperature: ≤45℃
    • Cooling method: air cooling
    • intake pressure: 0.6~1.0Mpa
    • Pressure drop: ≤0.02Mpa
    • Pressure dew point: 3~10℃
    • Refrigerant: R22
    Request a Quote
    Technical Parameter of Refrigerated Air Dryer, Normal Temperature Air Cooling Type
    model Item XR-15NF XR-20NF XR-25NF XR-30NF XR-40NF XR-50NF XR-60NF XR-80NF XR-100NF
    Air capacity(Nm3/min) 17 23 27 33 45 55 65 85 100
    Voltage/frequency(V/Hz) 380/50
    Power of compressor(HP) 3.9 4.2 5.5 6.5 8.5 10.5 13.5 20 25
    Power of fan 2×180 2×245 3×245 3×550 4×520 8×195
    Pipe size of air DN80 DN100 DN125 DN150
    Total weight(kg) 400 450 570 660 770 850 1050 1650 2455
    measurement length(mm) 1690 1795 1795 1810 2160 2170 2450 2520 2600
    width(mm) 750 800 800 960 960 1120 1250 1300 1310
    height(mm) 1527 1527 1527 1863 1874 2046 2300 2450 2650
    Work Procedure of Refrigerant Air Dryer
    • Firstly, the compressed air is cooled by pre-cooler (18 or 19) before it flows into the heat accumulator (1), and then, depending on the heat exchange between the air in the heat accumulator and the returning compressed air to further cool the compressed air. Meanwhile, drain out the condensate water.
      After that, the compressed air will go into the evaporator (2), and will be cooled once again by interchanging of heat with refrigerant, thus achieving compressed air with required dew point temperature.
    • After a series of compressed air cooling within the pre-cooler (18 or 19), heat accumulator (1), and evaporator (2), the water vapor in compressed air will coagulate into water mist which will be finally separated from the air by gas-liquid separator (3), thus draining out the liquid water.
    • The dried and cooled air comes out from gas-liquid separator (3), and then goes through heat exchanger (1) again. It becomes calefactive while leaving the dryer, which assists in bringing down the relative moisture.
