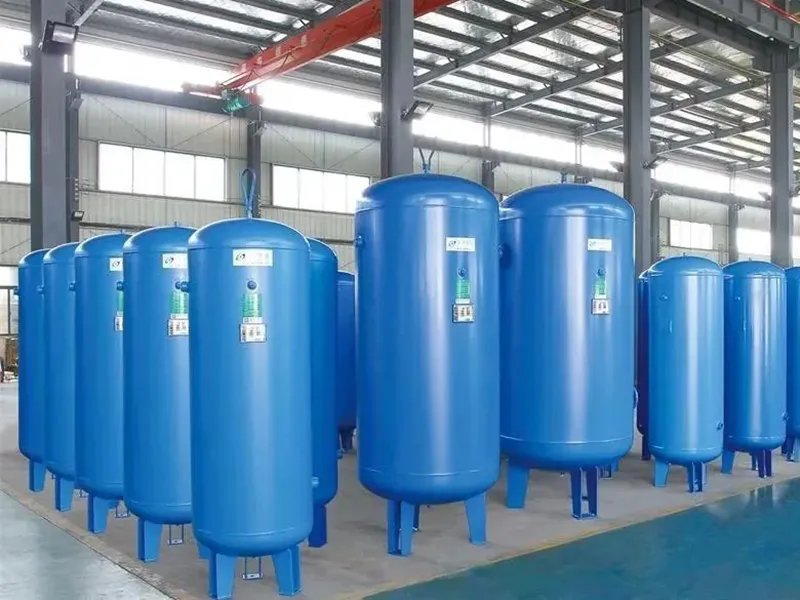

Stainless Steel Air Receiver
Air receiver, also known as pressure vessel, is mainly used to store all kinds of compressed, liquified gases (such as ammonia, chlorine, propane, butane and LPG) for special purposes. As a result of the differential pressure inside and outside the vessel, any improper operation of air receiver can cause fatal consequences. Therefore, strict inspections and regulations have been implemented in designing, manufacturing and operation the air receivers by engineering authorities, on the basis of laws. Basically, the air receivers are designed into a closed container and made of stainless steel, carbon stainless steel and alloy stainless materials, and they commonly share the technical parameter of maximum safe operating pressure and temperature.
| SN. | Size | Design Temperature ℃ | Height H1 | Diameter φ | Inlet | Outlet | Supporting Block | Safety Valve Connection | Drain Valve Connection | |||
| Volume / Work Pressure | H2 | DN | H3 | DN | D | d | ||||||
| 1 | 0.3/0.8 | 110 | 1308 | 600 | 504 | Rp1-1/2 | 954 | Rp1-1/2 | 420 | 20 | Rp3/4 | R1/2 |
| 2 | 0.3/1.0 | 1308 | 504 | 954 | ||||||||
| 3 | 0.3/1.3 | 1310 | 505 | 955 | ||||||||
| 4 | 0.3/1.6 | 1310 | 505 | 955 | ||||||||
| 5 | 0.6/0.8 | 110 | 2058 | 600 | 654 | Rp1-1/2 | 1654 | Rp1-1/2 | 420 | 20 | Rp3/4 | R1/2 |
| 6 | 0.6/1.0 | 2058 | 654 | 1654 | ||||||||
| 7 | 0.6/1.3 | 2060 | 655 | 1655 | ||||||||
| 8 | 0.6/1.6 | 2060 | 655 | 1655 | ||||||||
| 9 | 1.0/0.8 | 110 | 2189 | 850 | 722 | 65 | 1722 | 65 | 595 | 24 | Rp1 | R1/2 |
| 10 | 1.0/1.0 | 2191 | 723 | 1723 | ||||||||
| 11 | 1.0/1.3 | 2193 | 724 | 1724 | ||||||||
| 12 | 1.0/1.6 | 2197 | 726 | 1726 | ||||||||
| 13 | 1.5/0.8 | 110 | 2513 | 900 | 734 | 80 | 2084 | 80 | 630 | 24 | Rp1 | R1/2 |
| 14 | 1.5/1.0 | 2515 | 735 | 2085 | ||||||||
| 15 | 1.5/1.3 | 2517 | 736 | 2086 | ||||||||
| 16 | 1.5/1.6 | 2521 | 738 | 2088 | ||||||||
| 17 | 2.0/0.8 | 110 | 2770 | 1000 | 760 | 80 | 2310 | 80 | 700 | 24 | Rp1-1/4 | R1/2 |
| 18 | 2.0/1.0 | 2772 | 761 | 23111 | ||||||||
| 19 | 2.0/1.3 | 2776 | 763 | 2313 | ||||||||
| 20 | 2.0/1.6 | 2810 | 780 | 2330 | ||||||||
| 21 | 3.0/0.8 | 110 | 2952 | 1200 | 881 | 100 | 2381 | 100 | 906 | 24 | Rp1-1/2 | R3/4 |
| 22 | 3.0/1.0 | 2956 | 883 | 2383 | ||||||||
| 23 | 3.0/1.3 | 2956 | 883 | 2383 | ||||||||
| 24 | 3.0/1.6 | 2970 | 890 | 2390 | ||||||||
| 25 | 4.0/0.8 | 110 | 3022 | 1400 | 911 | 100 | 2411 | 100 | 1050 | 24 | Rp1-1/2 | R3/4 |
| 26 | 4.0/1.0 | 3026 | 913 | 2413 | ||||||||
| 27 | 4.0/1.3 | 3060 | 930 | 2430 | ||||||||
| 28 | 4.0/1.6 | 3064 | 932 | 2432 | ||||||||
| 29 | 5.0/0.8 | 110 | 3522 | 1400 | 911 | 100 | 2911 | 100 | 1050 | 24 | Rp2 | R3/4 |
| 30 | 5.0/1.0 | 3526 | 913 | 2913 | ||||||||
| 31 | 5.0/1.3 | 3560 | 930 | 2930 | ||||||||
| 32 | 5.0/1.6 | 3564 | 932 | 2932 | ||||||||
| 33 | 6.0/0.8 | 110 | 4096 | 1500 | 958 | 100 | 3358 | 100 | 1125 | 24 | Rp2 | 43/4 |
| 34 | 6.0/1.0 | 4096 | 958 | 3358 | ||||||||
| 35 | 6.0/1.3 | 4130 | 975 | 3375 | ||||||||
| 36 | 6.0/1.6 | 4134 | 977 | 3377 | ||||||||
| 37 | 8.0/0.8 | 110 | 4596 | 1600 | 1033 | 100 | 3433 | 100 | 1200 | 30 | Rp2 | R1 |
| 38 | 8.0/1.0 | 4630 | 1050 | 3450 | ||||||||
| 39 | 8.0/1.3 | 4634 | 1052 | 3452 | ||||||||
| 40 | 8.0/1.6 | 4638 | 1054 | 3454 | ||||||||
| 41 | 10.0/0.8 | 110 | 4296 | 1800 | 1083 | 150 | 3483 | 150 | 1350 | 30 | Rp2-1/2 | R1 |
| 42 | 10.0/1.0 | 4330 | 1100 | 3500 | ||||||||
| 43 | 10.0/1.3 | 4334 | 1102 | 3502 | ||||||||
| 44 | 10.0/1.6 | 4338 | 1104 | 3504 | ||||||||
- Mechanical Manufacturing Industry: Air receivers reduce the frequency of air compressor startups, not only storing compressed air but also stabilizing output pressure and providing buffering. They are commonly used as auxiliary equipment with air compressors.
- Food Industry: Primarily, stainless steel and carbon steel air receivers are used to provide power for filling machines and bottle blowing machines. They also facilitate pneumatic conveying, pneumatic cooling, and pneumatic spraying.
- Textile Industry: Compressed air from air receivers is used to power air jet looms, sizing machines, dyeing and finishing machines, carding machines, and yarn aspirator guns, providing clean pneumatic energy. Stainless steel, as well as carbon steel air receivers are generally used in textile industry.
- Electronics Industry: Critical for the operation of chip oxidation equipment, vacuum systems, pneumatic control valves, and pneumatic handling devices, air receivers are essential for the completion of various processes.
- Environmental Engineering Industry: Air receivers are widely used for atmospheric pollution control, solid waste treatment, and wastewater management.

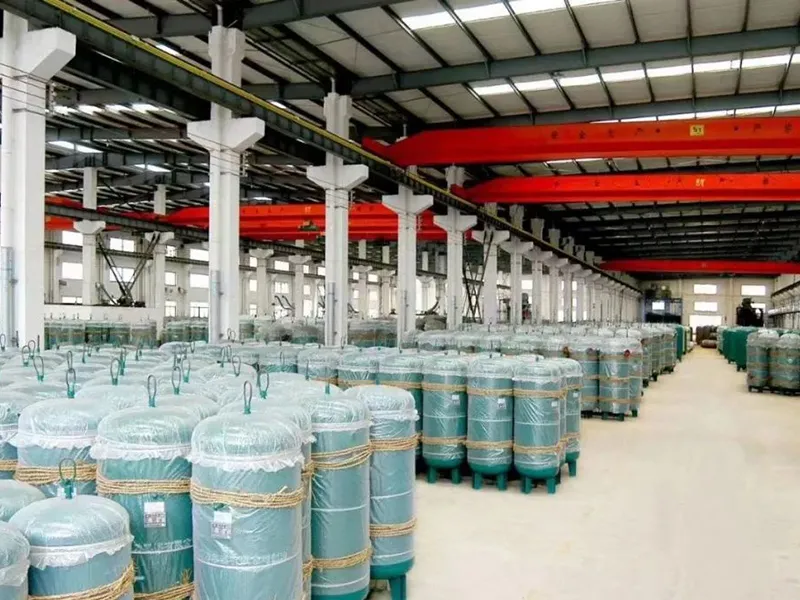

We are a major manufacturer of air receivers based in China. Our air receivers, screw air compressors, piston air compressors and centrifugal air compressors and so forth, are produced with advanced technology, designed by experienced designers, and inspected with strict quality assurance system. So our products are of reliable quality, and they are certificated with CE and TUV as well.
At present, our products have been successfully landed on the markets of over 120 countries and regions, including the market of USA, Canada, Russia, the United Kingdom, France, Germany, Australia, Brazil, Japan, etc.
We welcome you to visit our company and expect to cooperate with all our customers, all over the world.
