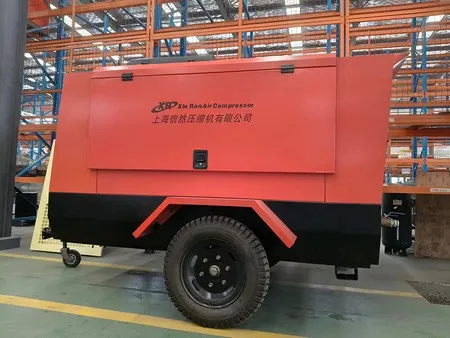

Portable Air Compressor

Portable Air Compressor

For the moment, our diesel portable air compressors are available with the following volumes: 3 cubic meters, 5 cubic meters, 6 cubic meters, 10 cubic meters, 17 cubic meters, 25 cubic meters, 35 cubic meters, etc.

Classification
Portable Diesel Air Compressor for Municipal Use: XR - 135-8, XR185-8, XR265-8, etc.
Portable Diesel Air Compressor for Mine: XR300-14, XR400-13, XR460-14, XR500-10, XR600-14, XR750-14, etc.
Portable Diesel Air Compressor for Water Wells: XR750-20, XR900-14, XR1070-24, XR1170-30, etc.

Features
1.Main engine of Portable air compressor: large diameter screw rotor is adopted. The main engine is directly connected with the diesel engine through high elastic coupling. Main engine speed and diesel engine (not more than 1850r/min), longer life.
2.Portable air compressor diesel engine: Cummins diesel engine is selected, which meets the emission requirements of Euro iv, has low fuel consumption, and has the after-sales service system covering the whole country, so users can get rapid and perfect service.
3. Portable air compressor has good adaptability. It can adjust the diesel throttle (exhaust volume) automatically according to the amount of gas used, without wasting a drop of diesel. This is equivalent to the frequency conversion control of electric screw machine.
4. The operation parameters of portable air compressor are clear at a glance, and it has multiple prompts, gold alarm and shutdown protection functions.

Advantages
1.Xinran portable air compressor has high reliability: the compressor has few parts and no wearing parts, so it is reliable in operation and has a long life. The intermission period of overhaul can reach 40,000-80,000 hours.
2.Xinran portable air compressor is easy to operate and maintain: with high degree of automation, operators do not need to go through a long time of professional training, and can realize unattended operation;
3.Xinran portable air compressor has good dynamic balance: it has no unbalanced inertia force, can run smoothly at high speed, and can run without foundation. It is especially suitable for mobile compressor with small volume, light weight and small floor space.
4.Xinran portable air compressor has strong adaptability: it has the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, and it can maintain high efficiency in a wide speed range.

Technical Data
Model XR135-7 XR185-8 XR265-8 XR300-14 XR400-13 XR460-14
Compressor FAD(m3/min) 3.5 5.2 7 8.5 11 13
Pressure(Bar) 7 8 8 14 13 14
Fuel(L) 48 85 85 120 210 300
Stage Single Single Single Single Single Single
Connection 2XG3/4 G3/4, G11/4 G3/4, G11/4 G1, G11/2 G1, G11/2 G1, G11/2
Power Motor type YSD490 Y4100G Y4102ZG 6BTA5.9 6BTA5.9 6BTA5.9
Manufactory Yituo Yituo Yituo Cummins Cummins Cummins
Power(KW) 33 42 55 97 110 132
rotation(rpm) 2400 2200 2200 2200 2200 2200
Battery(V) 24 24 24 24 24 24
Machine unit L(mm) 2910 3315 3315 3900 4200 4300
W(mm) 1526 1607 1607 1980 1520 1300
H(mm) 1430 1583 1583 1950 2268 1950
Weight(Kg) 950 1200 1350 2000 2300 2500
Model XR500-10 XR600-14 XR750-14 XR750-20 XR900-14 XR1070-24
Compressor FAD(m3/min) 14 17 21.2 21.2 23.3 30
Pressure(Bar) 10 14 14 20 14 24
Fuel(L) 300 360 380 380 410 480
Stage Single Single Single Single Single Single
Connection G1, G11/2 G1, G11/2 G11/2, G2 G11/2, G2 G11/2, G2 G21/2, G21/2
Power Motor 6BTA5.9 6BT8.3 6LTAA8.9 6LTAA8.9 6LTAA8.9 6LTAA8.9
Manufactory Cummins Cummins Cummins Cummins Cummins Cummins
Power(KW) 132 179 239 260 239 348
Rotation(rpm) 2200 1800 1800 1800 2100 1800
Battery(V) 24 24 24 24 24 24
Machine unit L(mm) 4300 5200 5200 5200 5200 5500
W(mm) 1300 1960 2060 2060 2060 2300
H(mm) 1950 2300 2480 2480 2480 2500
Weight(Kg) 2500 2800 5600 6200 5800 6800
