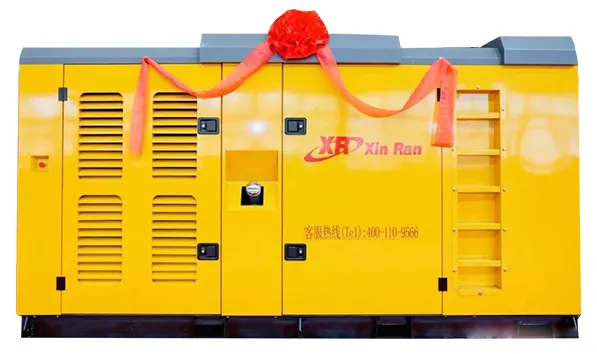

Skid Mounted Screw Air Compressor
Oil-lubricated rotary screw compressor
Configuration of Skid Mounted Screw Air Compressor
Self-designed cooling system
- The high property plate-fin cooler provides our skid mounted screw air compressor with excellent cooling performance.
- Maximum ambient temperature can be 52℃. (Conventionally, the motors should not keep working for long time when the surround temperature is higher than 46℃)
- A two-stage air filter system is available in our screw air compressor, which can keep the air compressor away from dust and other particles.
- The damping monitor will remind you to replace the filter elements when it is necessary.
- Free air delivery
1-64m³/min
- Power
7.5-355kW
- Discharge pressure
0.7-1.3MPa
Technical Data
Diesel Driven Skid Mounted Screw Air Compressor
| Model | | | | | | | | |
| Number of Compression Stage | Single stage compression | Two stage compression | ||||||
| Free Air Delivery (m³/min) | 3.8 | 7.5 | 8.5 | 10.3 | 25.5 | 21.2 | 23.3 | 30.0 |
| Discharge Pressure (bar) | 7 | 7 | 13.8 | 10.3 | 10.3 | 20.7 | 17.2 | 24.0 |
| Engine Power (kW) | 30 | 60 | 97 | 97 | 239 | 260 | 260 | 348 |
| Fuel/Cooling | Diesel/Water cooling | |||||||
| Speed (rpm) | 2400 | 2200 | 2000 | 2000 | 1800 | 1800 | 1800 | 1800 |
| Dimenisons (L×W×H) (mm) | 2735 | 2735 | 3900 | 3900 | 5200 | 5200 | 5200 | 5500 |
| 1705 | 1705 | 1980 | 1980 | 2060 | 2060 | 2060 | 2300 | |
| 1800 | 1800 | 1950 | 1950 | 2480 | 2480 | 2480 | 2500 | |
| Weight (kg) | 916 | 1350 | 2000 | 2000 | 5600 | 5600 | 5600 | 6800 |
For detailed specifications and certification information, please click pdf download
Electric Skid Mounted Screw Air Compressor
| Model | | | | | | |
| Number of Compression Stage | Single stage compression | Two stage compression | ||||
| Free Air Delivery (m³/min) | 3.6 | 5.2 | 6.9 | 8.5 | 23.5 | 30.0 |
| Discharge Pressure (bar) | 8 | 7 | 7 | 14 | 20.7 | 24.0 |
| Cooling Method | Air cooling | |||||
| Motor Power (kW) | 22 | 30 | 45 | 75 | 200 | 315 |
| Speed (rpm) | 2960 | 2960 | 2960 | 2960 | 2960 | 2960 |
| Dimensions (L×W×H)(mm) | 2980×1700×1600 | 3600×1700×1600 | 3600×1700×1600 | 3800×1986×1750 | 4150×2000×2200 | 4550×2200×2400 |
| Weight (kg) | 920 | 1180 | 1380 | 1940 | 5600 | 6800 |
For more details, please click pdf download
Skid Mounted Screw Air Compressor for Plateau (Under 4.5km)
- Equipped with standard automatic air exhaust louver boards and the special soundproof baffles ensure the lowest operation noise.
- High intensity aluminium ribbed radiator, and special cooling design make sure our screw air compressor keep in an optimum cooling state. There are water-gun at both sides of the air compressor for daily cleaning.
- This kind of screw air compressor is equipped with two heavy duty fuel preliminary devices which attached with water separators and fine filters, which can protect the oil-injection system of the engine from damaging by low grade fuel.
- The engine crankcase breather of our air compressor is provided with a filter device, thus absorbing discharged harmful gases. This makes our skid mounted air compressor environmentally friendly and also prolongs the service life of lubricant and shaft seal.
- Our screw air compressor is designed with triplex air intake filtration system which is composed of centrifugation system, high efficient filtering layer and safe filter element. This air intake filtration system can prevent engine damages in dusty environment. Meanwhile, separated air intake passage ensures continuous heavy duty running in high temperature.
