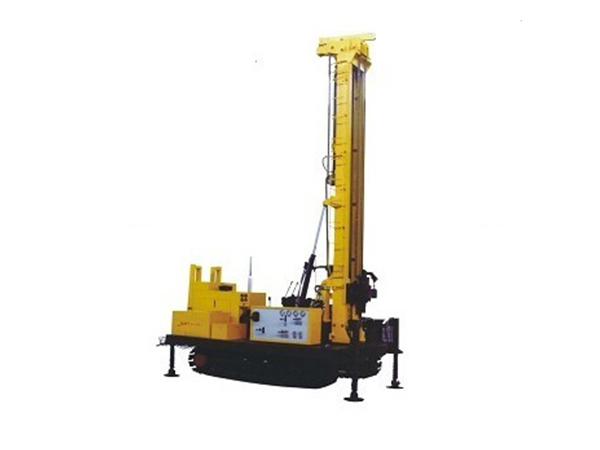

Water Well Drilling Rig

Water Well Drilling Rig

The Xinran water well drilling rigs are versatile and efficient. They are the optimal choices for a wide range of water drilling application.

Bottom

Technical Parameter

Model XR10SZ XR20SZ XR30SZ
Weight (kg) 6500 6500 9500
Dimension (mm) 6000x2300x2500 5100x2300x2850 5200x2300x3200
Travel speed (Km/h) 0~2.5 0~2.5 0~2.5
Ground clearance (mm) 245 250 280
Drill Head Max. Thrust Force（°） 15 25 25
Drilling depth (m) 120 200 300
Working pressure (Mpa) 1.05-2.46 1.05-2.46 1.05-2.46
Air consumption (m3/min) 16-30 16-35 16-40
Drill Pipe diameter （mm) φ89 φ79/φ89 φ89-φ102
Drill Pipe Length（mm) 3000 3000 3000/4000
Drilling hole diameter (mm) φ115-180 φ115-254 φ158-300
Drill Head Max. Thrust Force 30 45 50
Drill Head Max. Lifting Force 70 95 150
Output Torque（N.m) 3200 4000 8000/4000
